Airplane Pre-conditioning Air Unit Connection Methods Explained

Airplane Pre-Conditioned Air Units (PCA units) are essential for keeping the temperature inside an aircraft comfortable while it’s parked on the ground.

Whether an aircraft is waiting for passengers to board, undergoing maintenance, or preparing for its next flight, maintaining a stable cabin temperature is crucial.

PCA units help cool or heat the air without relying on the aircraft’s internal power, which saves fuel and reduces emissions.

Understanding how these PCA units connect to the aircraft is important for ensuring smooth operations and minimizing delays. Different connection methods are used, depending on the type of aircraft and the airport’s infrastructure.

From flexible ducts to underground systems and jet bridge connections, each method has its pros and cons. Choosing the right one can improve efficiency, reduce costs, and ensure that passengers and crew are comfortable before takeoff.

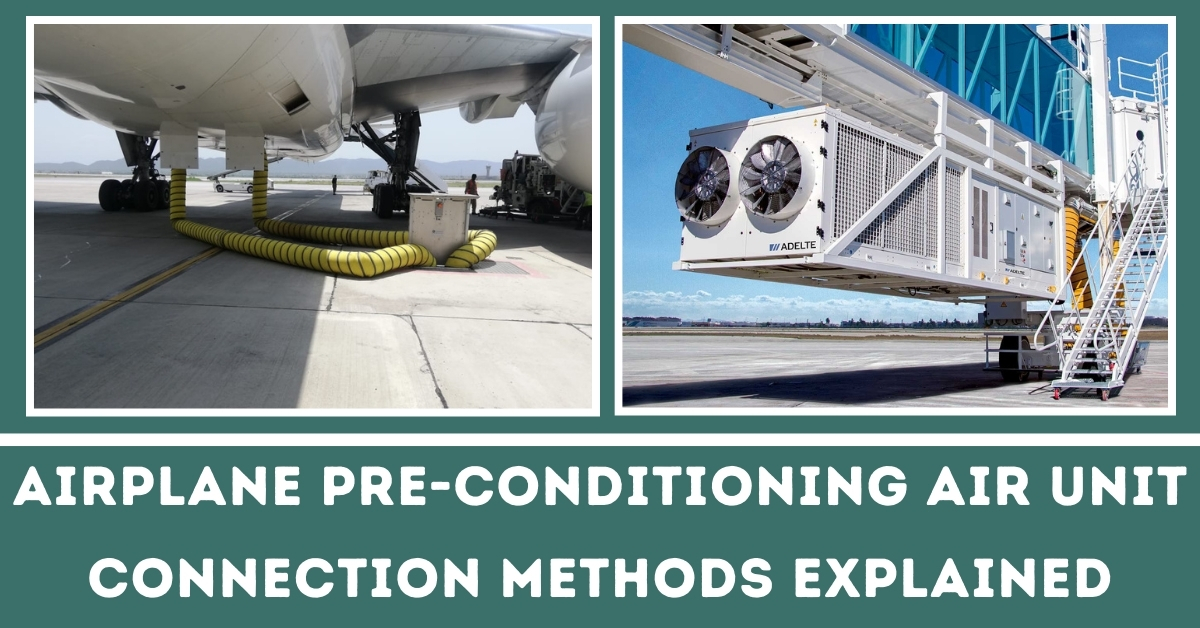

Airplane Pre-conditioning Air Unit Connection Methods Explained

In this guide, we’ll explain the various methods used to connect PCA units to aircraft and highlight what makes each approach effective in different scenarios.

Airplane Pre-conditioning Air Unit Connection Method Explained

Why is Proper Connection of PCA Units Important?

Before diving into the connection methods, it’s crucial to understand the significance of proper PCA unit connections. A poorly connected system can lead to several issues, such as:

  • Cabin Discomfort: Improper temperature regulation can make the interior too hot or too cold.
  • Increased Fuel Consumption: If the PCA unit is not providing sufficient air, the aircraft might use its APU, consuming more fuel.
  • Safety Concerns: A faulty connection might disrupt the balance of the internal climate systems, potentially causing damage to sensitive electronic equipment or other parts of the plane.

Thus, establishing a solid, reliable connection between the PCA unit and the aircraft is critical to both operational efficiency and passenger comfort.

The Role of PCA Units in the Aviation Ecosystem

As airplanes sit on the ground between flights, their engines are off, which means no active climate control through onboard systems.

This is where PCA units come into play. They maintain cabin temperatures by providing either hot or cool air, depending on the weather conditions and specific needs of the aircraft.

Why can’t the airplane’s system handle this?

The airplane has an onboard system powered by the APU. However, running the APU burns fuel, which not only increases operational costs but also generates noise and emissions. Using ground-based PCA units instead is a more efficient solution.

These units are plugged into the aircraft to regulate the internal temperature, thus saving fuel and reducing the environmental impact.

Pre-conditioning Air Unit Connection Methods Explained

Connecting a PCA unit to an aircraft involves various methods depending on the equipment available, the size of the aircraft, and the airport’s infrastructure. Here, we’ll explore the most common PCA connection methods and the technical aspects behind them.

1. Fixed Ground-Based PCA Units

One of the most common methods to connect a PCA unit to an aircraft is through fixed ground-based units. These systems are usually installed near the airport gate and are connected via a hose to the airplane.

How Does it Work?

  • Fixed Installation: The PCA unit is permanently installed at a set location on the tarmac, typically close to the jet bridge or a designated gate.
  • Flexible Hose: The air generated by the unit is delivered through a flexible hose that is manually connected to the aircraft’s inlet.
  • Temperature Control: The air temperature is adjusted according to the climate requirements of the plane. In summer, it provides cool air, while in winter, it supplies warm air.

Advantages:

  • Easy to Maintain: Since the unit is stationary, it is easier to perform regular maintenance.
  • Power Efficiency: These units are often powered by airport infrastructure, which is more energy-efficient than portable alternatives.

Challenges:

  • Limited Mobility: Fixed units cannot be moved, so they are only useful for aircraft that are parked in their specific range.
  • Hose Length: The hose must be long enough to reach all types of aircraft, which sometimes creates logistical challenges.

2. Mobile PCA Units

When fixed units are not available, airports rely on mobile PCA units. These are typically mounted on trucks and can be driven to any part of the tarmac to serve aircraft, regardless of location.

How Does it Work?

  • Truck-Mounted Units: These PCA units are attached to vehicles that drive them to the aircraft.
  • Flexible Connection: Like fixed units, mobile PCA systems also use a flexible hose to deliver pre-conditioned air to the aircraft.
  • Versatility: Mobile units can connect to any aircraft, whether it’s on a remote stand, away from jet bridges, or located in a maintenance area.

Advantages:

  • Flexibility: Mobile PCA units can service aircraft in remote areas of the airport where fixed units cannot reach.
  • Multi-Aircraft Service: These units can be deployed to multiple aircraft throughout the day, making them ideal for airports with high aircraft traffic.

Challenges:

  • Higher Maintenance Costs: Mobile units require more maintenance than fixed ones due to the added wear and tear from constant movement.
  • Fuel Consumption: These units often run on diesel or electric power, which can result in higher operational costs depending on the fuel source.

3. Bridge-Mounted PCA Units

Another effective method of connecting PCA units to aircraft is via bridge-mounted systems. These units are installed directly on the jet bridges used for passenger boarding and deplaning.

How Does it Work?

  • Bridge Integration: The PCA unit is mounted on the jet bridge, so it automatically aligns with the aircraft’s position when docked at the gate.
  • Automatic Connection: As the aircraft parks and the jet bridge is extended, the PCA unit connects directly to the airplane’s inlet, providing pre-conditioned air.
  • No Ground Crews Needed: Since the unit is attached to the jet bridge, there is minimal manual intervention required.

Advantages:

  • Efficiency: Bridge-mounted PCA units are highly efficient as they require little setup time. Once the plane is parked and the jet bridge is in place, the connection can be established.
  • Lower Labor Costs: There is no need for ground crews to manually connect the unit, as the system is almost entirely automated.

Challenges:

  • Limited Flexibility: These systems are only available at gates with jet bridges. Remote stands and other locations without jet bridges cannot benefit from them.
  • Installation Costs: Setting up bridge-mounted PCA units can be costly and requires significant infrastructure investment.

4. Underground PCA Systems

In modern, high-traffic airports, the underground PCA system is gaining popularity due to its seamless design and operational efficiency.

How Does it Work?

  • Underground Ducting: The PCA units are installed underground, with ducts that lead directly to various gate positions.
  • Pop-Up Connectors: When an aircraft parks, a pop-up connector emerges from the ground and attaches to the plane, delivering conditioned air from the PCA unit.
  • Automated Control: Many of these systems are fully automated, with minimal manual intervention needed from the ground crew.

Advantages:

  • Streamlined Operations: Underground systems reduce clutter on the tarmac, making airport operations smoother and more efficient.
  • No Equipment Obstructions: Since the PCA units and ducting are underground, there’s less equipment crowding the gates, which improves safety and ease of aircraft movement.

Challenges:

  • High Installation Costs: Setting up underground systems requires extensive construction, which is a significant investment for airports.
  • Maintenance Complexity: Repairs and maintenance are more challenging compared to above-ground systems because the units are harder to access.

Choosing the Right PCA Connection Method: Factors to Consider

Airports select their PCA connection methods based on a variety of factors. Here are some key considerations:

  1. Aircraft Traffic: Busy airports with many flights often opt for bridge-mounted or underground systems for maximum efficiency and to reduce labor costs. Smaller airports may use mobile units due to their flexibility.
  2. Climate: In hot regions, there’s a constant need for cooling air, while in colder climates, heating is essential. The right PCA connection method ensures the system provides optimal performance in the region’s prevailing weather conditions.
  3. Budget Constraints: Airports with limited budgets might prefer mobile units, which have lower initial costs. However, large hubs might invest in underground systems for long-term operational efficiency.
  4. Infrastructure Limitations: The existing layout of the airport dictates what PCA connection methods are feasible. For example, older airports might find it easier to implement mobile PCA units, while newly constructed airports often design their infrastructure to support bridge-mounted or underground systems.

Conclusion

Pre-conditioning Air (PCA) units play a vital role in maintaining the climate inside aircraft when they are parked at gates, and the methods used to connect these units to planes are essential to the aviation industry’s operational efficiency.

From fixed ground-based units to mobile, bridge-mounted, and underground systems, each connection method has its pros and cons.

Airports must consider several factors, including aircraft traffic, local climate, infrastructure, and budget, to select the most appropriate method for their operations.

Proper PCA connections ensure passenger comfort, reduce fuel consumption, and promote smoother ground operations, making them an indispensable component of modern air travel.

By understanding the different connection methods, the aviation community can better equip itself to provide efficient, cost-effective, and environmentally friendly services on the ground—ensuring every flight begins and ends with comfort and safety in mind.
